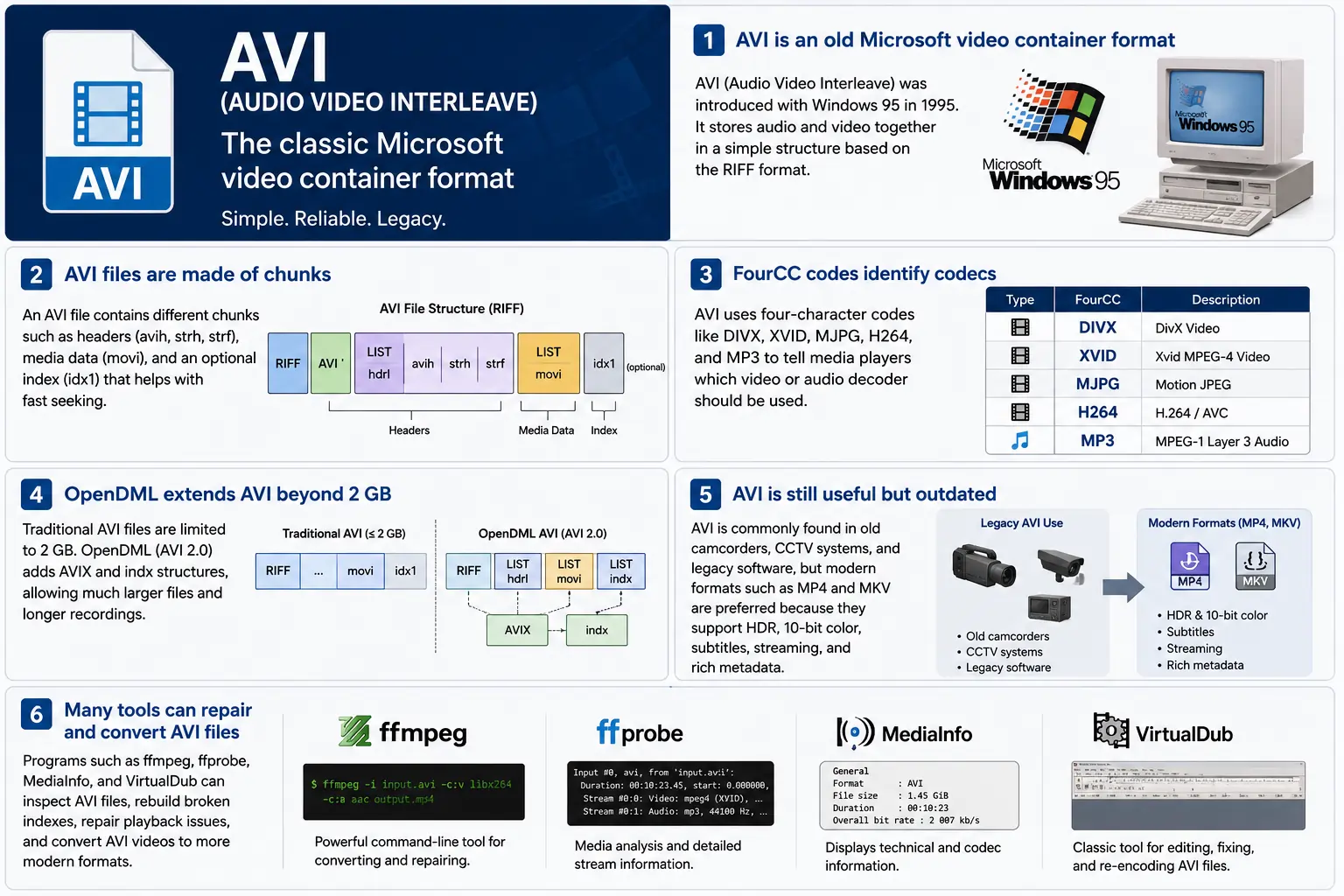

Decoding AVI: Inside Microsoft’s Legacy Container Architecture

Last Updated: 22 Jun, 2026

TL;DR – AVI (Audio Video Interleave) is Microsoft’s first “digital video” container, born with Windows 95. It’s a simple RIFF‑based file that interleaves compressed video and audio chunks so a player can read them in lock‑step. The format is still understood by Windows Media Player and a host of open‑source tools, but it lacks modern features like HDR, 10‑bit color, and robust streaming metadata. If you ever need to dig into legacy footage, understand the chunk layout, FourCC codes, and the OpenDML extensions that lift the 2 GB ceiling – that’s the meat of AVI.

1. What Exactly Is an AVI File?

• Full name: Audio Video Interleave
• First appearance: Windows 95 (1995) – Microsoft’s answer to “digital video” on the consumer PC.
• Specification: Built on the RIFF (Resource Interchange File Format) spec from 1991. RIFF is a generic “chunk‑based” container; AVI simply defines a set of chunks that hold audio, video, and indexing data.
• File extension / MIME: .avi – video/x-msvideo.
• Primary goal: Keep audio and video streams tightly interleaved on disk so a naïve playback loop can read a video frame, then the matching audio sample, without costly seeks.
• Legacy status: Still playable in Windows Media Player, DirectShow, VLC, and countless other players, but it’s not a “modern” container. No native HDR, 10‑bit, variable‑bit‑rate, or rich metadata support.

2. Inside the Box – How AVI Works

The RIFF Chunk Skeleton

An AVI file is just a series of chunks:

RIFF <size> "AVI "          ; file header
  LIST "hdrl"               ; header list
    avih ...                ; main AVI header (global info)
    LIST "strl"             ; stream list (one per stream)
      strh ...              ; stream header (type, codec, timing)
      strf ...              ; stream format (codec‑specific data)
  LIST "movi"               ; interleaved media data
    00dc <size> <video frame>
    01wb <size> <audio block>
    …
  idx1 ...                  ; optional index for fast seeking

• Chunk ID (4 bytes) – e.g., avih, strh, movi.
• Chunk size (4 bytes) – length of the data that follows (excluding the ID and size fields).
• Data – the actual payload (headers, raw frames, etc.).

Because RIFF is extensible, you can add new chunk types without breaking older parsers – a design that kept AVI alive for decades.

FourCC – The Codec Whisperer

Four‑character codes (FourCC) are the glue that tells a player which decoder to load. Some common ones you’ll see in AVI files:

The FourCC lives in the strh chunk (codec identifier) and sometimes in the strf block (pixel format, audio sample format).

Timing & Synchronization

AVI uses a simple time‑base system:

• Global header (avih): dwRate / dwScale → frames per second.
• Per‑stream header (strh): its own dwRate / dwScale for audio or secondary video streams.

The player multiplies the frame number by scale/rate to compute a presentation timestamp (PTS). If the scales don’t line up, you’ll see the classic “audio drifts out of sync” bug that haunts legacy tools.

The movi Chunk – Where the Media Lives

All compressed frames sit in the movi LIST. Each frame is preceded by a chunk ID that tells you whether it’s video (00dc) or audio (01wb). The ID also encodes the stream number, so a file with two audio tracks would have 01wb and 02wb.

Because the data is already interleaved, a player can read a video frame, then the next audio block, and present them together without seeking far ahead. That deterministic write pattern made AVI popular for early capture devices that needed low‑latency disk writes.

Indexing (idx1) – Fast Forward, Fast Rewind

The optional idx1 chunk is a table of offsets and sizes for every frame in movi. When present, seeking is a simple table lookup. If it’s missing, players must scan the file on the fly – which can cause a noticeable “buffering” pause on large files.

OpenDML (AVI 2.0) – Breaking the 2 GB Barrier

The original RIFF spec limits a chunk’s size field to a 32‑bit unsigned integer → 2 GB maximum file size. OpenDML (sometimes called AVI 2.0) introduced:

• AVIX LISTs – additional “extended” RIFF sections that can follow the first 2 GB.
• indx chunk – a 64‑bit capable index.
• Extra header fields for longer durations.

Most modern tools (ffmpeg, VLC) automatically switch to OpenDML when the output exceeds 2 GB, but many older players still choke on AVIX chunks, so you’ll sometimes see compatibility hacks that split a long capture into several 2 GB AVI files.

3. Where Does AVI Live in 2024?

In short, AVI is alive but aging – it survives where old hardware or simple interleaved storage is required, but it’s not a first‑choice for new projects.

4. Hands‑On: Working with AVI Today

A. Peek at a Minimal Header (hex)

52 49 46 46  00 00 00 00  41 56 49 20   ; "RIFF" + size + "AVI "
4C 49 53 54  20 00 00 00  68 64 72 6C   ; LIST "hdrl"
...

The RIFF magic (52 49 46 46) tells any parser “this is a RIFF file”. The next four bytes are the total file size (minus 8). The "AVI " identifier locks the file into the AVI family.

B. Converting Modern MP4 → Legacy AVI

ffmpeg -i input.mp4 \
       -c:v mpeg4 -q

```bash
ffmpeg -i input.mp4 \
       -c:v mpeg4 -qscale:v 5 \   # MPEG‑4 Part 2 (DivX/Xvid compatible)
       -c:a mp3 -b:a 192k \      # MP3 audio (most AVI players understand this)
       -f avi output.avi

The command above forces MPEG‑4 Part 2 video (the codec most legacy AVI players recognize) and MP3 audio, then writes an AVI container. If you need OpenDML support for files larger than 2 GB, add the -movflags +faststart‑style flag that tells FFmpeg to use the extended AVIX chunks:

ffmpeg -i input.mp4 \
       -c:v mpeg4 -qscale:v 5 \
       -c:a mp3 -b:a 192k \
       -f avi -flags +global_header -movflags +faststart output.avi

Tip: Some older Windows Media Player versions still choke on the AVIX extension. If you must stay under 2 GB, split the source into multiple AVIs using the -segment_time and -f segment muxer.

5. Common Pitfalls & How to Fix Them

6. Debugging Tools You Should Keep Handy

A typical workflow when an AVI refuses to play:

1. Inspect with ffprobe -show_format -show_streams file.avi.
2. Check the index: ffmpeg -i file.avi -c copy -f avi -y temp.avi (FFmpeg will rebuild it automatically).
3. Validate FourCCs: mediainfo file.avi. If you see an unknown codec, consider re‑encoding that stream.
4. Repair with VirtualDub → “File → Re‑open as AVI (OpenDML)”. Save a fresh copy.

7. When (and When Not) to Use AVI

Good Use‑Cases

Bad Use‑Cases

If you’re starting a new project, treat AVI as a fallback for legacy pipelines, not a primary delivery format.

8. Future Outlook – Will AVI Ever Make a Comeback?

The short answer: unlikely. The industry has coalesced around ISO‑BMFF‑based containers (MP4, MOV, HEVC‑MP4, etc.) because they support:

• Extensible metadata (ISO‑UserData, UUID boxes).
• Fragmented streaming (moof/mdat) for adaptive bitrate.
• Native HDR/10‑bit/12‑bit video definitions.

AVI’s design, while elegant for its time, is fundamentally limited by its 32‑bit size fields and its reliance on external FourCC‑driven codecs. Even though OpenDML extended the size limit, it never gained widespread adoption beyond niche surveillance and archival tools.

That said, software preservation will keep AVI parsers alive for decades. Projects like FFmpeg, GStreamer, and VLC will continue to support the format, ensuring that the massive archive of 1990s‑2000s footage remains accessible. In a world where “digital archaeology” is becoming a real discipline, knowing how to read and repair AVI files is still a valuable skill.

9. Quick Reference Cheat‑Sheet

Keep this table bookmarked; it covers 80 % of everyday AVI tasks.

10. Best Practices for Archiving AVI Files

Even though AVI is a legacy container, many institutions still have petabytes of it sitting on tape or in cold‑storage. Treating those assets with a disciplined workflow will save you headaches down the line.

By applying these steps at the moment of acquisition, you avoid costly “repair‑the‑archive” projects later.

11. Frequently Asked Questions (FAQ)

Q1: Can I store H.265/HEVC video inside an AVI file?
Short answer: Technically yes, if you supply the correct FourCC (HEVC or HVC1) and include the SPS/PPS NAL units in the strf chunk. In practice, very few players support it, and many will treat the stream as unknown. For reliable playback, stick to MPEG‑4 Part 2 or Motion‑JPEG.

Q2: Why does Windows Media Player sometimes show a black screen but still plays audio?
Explanation: The player has successfully opened the audio stream but failed to locate a usable video decoder for the FourCC. This can happen when the FourCC is custom or when the required codec isn’t installed. Installing a codec pack (e.g., K-Lite) or re‑encoding the video to a known FourCC resolves the issue.

Q3: Is there any way to embed subtitles directly into an AVI file?
Answer: AVI does not define a standard subtitle stream. Some tools cheat by adding a “txt” stream (FourCC txt ) that contains plain‑text subtitles, but only a handful of players (e.g., VirtualDub with a plugin) will render them. The recommended approach is to keep subtitles in a separate .srt or .ass file, or to re‑mux into a container that officially supports subtitles (MP4, MKV).

Q4: My video shows a “frame rate mismatch” warning in MediaInfo. What should I do?
Solution: Verify that the dwRate/dwScale values in both the global avih and per‑stream strh headers are consistent. If they differ, re‑mux with FFmpeg using -video_track_timescale to force a uniform time base:

ffmpeg -i broken.avi -c copy -video_track_timescale 1000 fixed.avi

Q5: Does AVI support multiple audio languages?
Yes, but with caveats. You can add several audio streams, each with its own strh/strf pair and a distinct stream number (01wb, 02wb, …). However, there is no standardized way to label the language; you must rely on external metadata (e.g., an accompanying .xml file) or embed a custom INFO chunk.

Q6: How can I extract raw frames from an AVI without re‑encoding?
Command:

ffmpeg -i source.avi -c:v copy -f image2 frame_%05d.bmp

Replace bmp with png or tiff if you prefer lossless image formats. The -c:v copy flag tells FFmpeg to dump the compressed frames as‑is; if the codec is MJPEG, the output will already be JPEG images.

Q7: Are there any security concerns when opening AVI files from untrusted sources?
Yes. Malformed chunk sizes can trigger buffer overflows in legacy parsers (e.g., older DirectShow filters). Always open unknown AVIs in a sandboxed environment or use a modern library like FFmpeg that performs strict bounds checking. Updating Windows Media Foundation and disabling legacy DirectShow filters further mitigates risk.

12. TL;DR Recap (for the Impatient)

• AVI = RIFF‑based, interleaved container introduced with Windows 95.
• FourCC tells the player which codec to use; common ones are DIVX, XVID, MJPG, H264, MP3 .
• Timing is driven by dwRate/dwScale in the global and stream headers.
• movi holds the actual media; idx1 (optional) speeds up seeking.
• OpenDML (AVIX) lifts the 2 GB limit but isn’t universally supported.
• Use cases today: legacy camcorder ingest, simple interleaved capture, archival of raw PCM video.
• Avoid for new projects: no HDR, 10‑bit, VBR, subtitles, or rich metadata.
• Toolbox: ffprobe, ffmpeg, MediaInfo, VirtualDub, aviindex, hex editors.
• Best practice: validate, checksum, generate modern proxies, and migrate large files to OpenDML.

13. Closing Thoughts

AVI’s simplicity is both its strength and its Achilles’ heel. It gave early PC users a straightforward way to store synchronized audio‑video pairs, and that design philosophy—interleaved chunks, a clear header layout, and extensible FourCC identifiers—still influences modern containers. While the industry has moved on to more feature‑rich formats, the sheer volume of legacy footage means AVI will remain a “must‑know” for anyone working in video preservation, forensic analysis, or any field that must bridge the past with today’s workflows.

If you ever find yourself staring at a dusty .avi on a hard drive from the late‑90s, you now have the conceptual map, the command‑line recipes, and the troubleshooting checklist to bring that footage back to life—whether you choose to keep it in its original container or transcode it into a modern, HDR‑ready format.

Happy demuxing!
